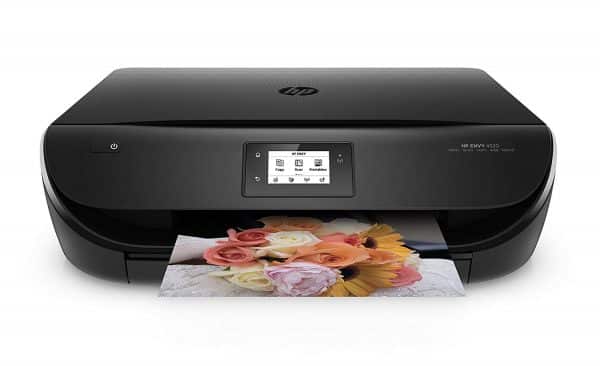

HP Envy 4520 Ink

How to Change Your HP 4520 Ink Cartridges

1. Turn on your HP 4520 ink printer. Connect its power cord to a suitable power supply and then press its Power button.


2. Open the Ink Cartridge Access Door. Carefully grasp the handles on both sides of the printer and then lift the access door to a fixed position
   .
3. The Carriage moves toward the center of the printer in the proper replacement position. Please wait for it to stop moving before you proceed.


4. Remove the Old or Empty Ink Cartridge. Lift the Lid on its slot to unlock the Cartridge and then pull it out from its slot.


5. Prepare the New Ink Cartridge. Unpack it from its packaging and then take out the plastic taping. Be sure to only touch the black plastic on the Cartridge to avoid potential damages.


6. Holding the New Ink Cartridge by its sides with the Nozzles facing the Carriage, slide it into the empty slot.


7. Lower the Lid on the cartridge slot to lock the New Ink Cartridge into place.


8. Do the same steps for any other Cartridge that you want to replace.


9. Close the Ink Cartridge Access Door.



Recommended Cartridges for HP 4520 Ink:

63, 63XL, F6U63AN, F6U64AN

Frequently Asked Questions for HP 4520 Ink Refill

1. What ink does HP ink 4520 printer use?

   Standard Yield - 63 (Page Yields - Black:200 and Color: 165)
   High Yield - 63XL (Page Yields - Black:480 and Color: 330)



2. Where is ink on HP ENVY 4520?

   HP 4520 ink cartridges are safely stored on the carriage inside the printer. You can access the printer carriage by opening the Ink Cartridge Access Door. Carefully grasp the handles found on both sides of the printer and then lift the access door. With the Ink Cartridge Access Door open, the carriage will move towards the center in the proper replacement position.

   If you want to remove or replace cartridges, wait until the carriage is at a full stop before proceeding. Then follow these steps:

   1. First, release the Cartridge by lifting the Lid on its slot. Once it’s unlocked, pull it out from its slot and set it aside.
   2. Ready the New Ink Cartridge. Unpack it from its packaging and then take out the plastic taping. Be sure to only touch the black plastic on the Cartridge to avoid potential damages.
   3. Holding the New Ink Cartridge by its sides with the Nozzles facing the carriage, insert it into the empty slot.
   4. Lower the Lid on the ink cartridge slot to lock the Ink Cartridge into place.
   5. Do the same steps for any other Cartridge that you want to remove or replace.
   6. Close the Ink Cartridge Access Door.
